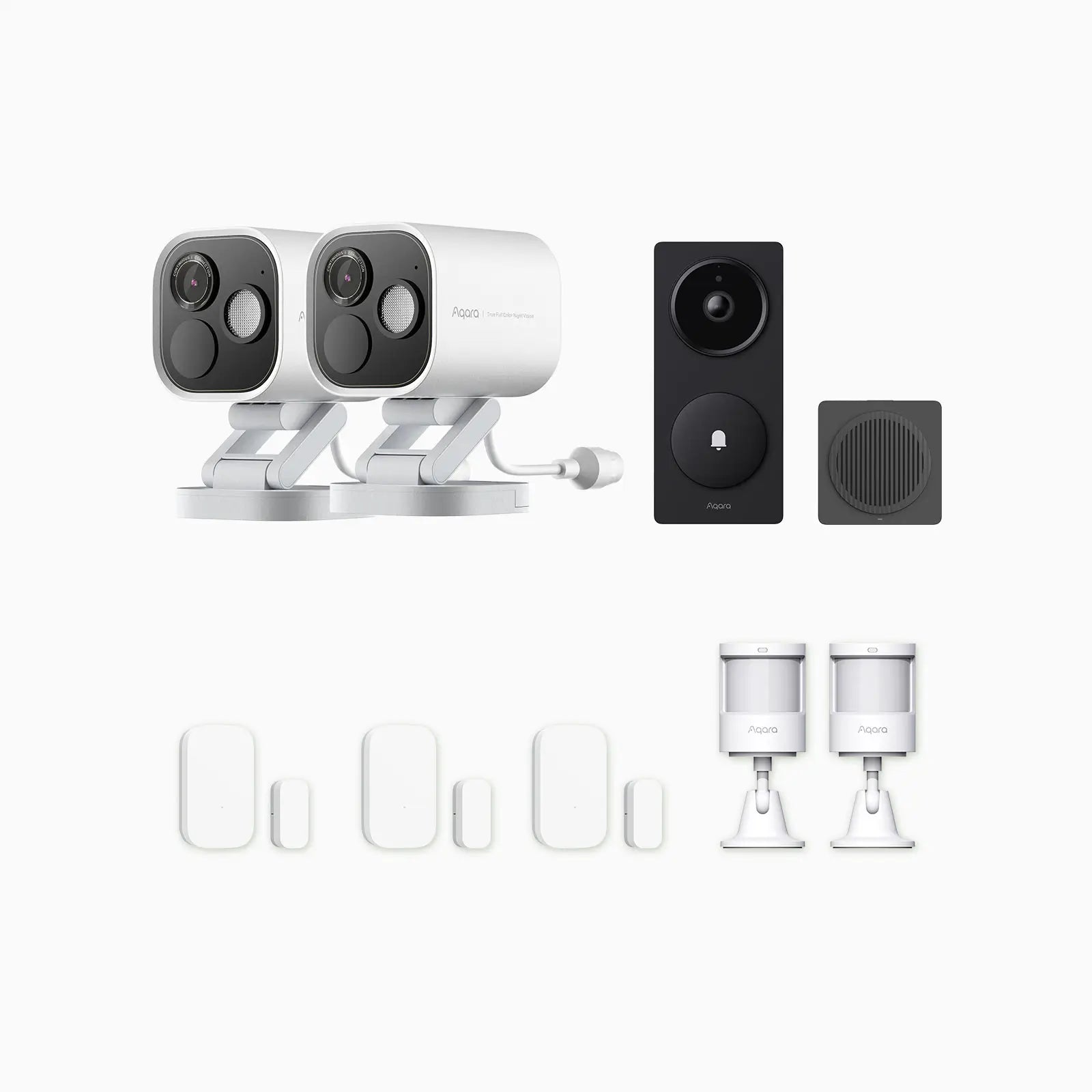

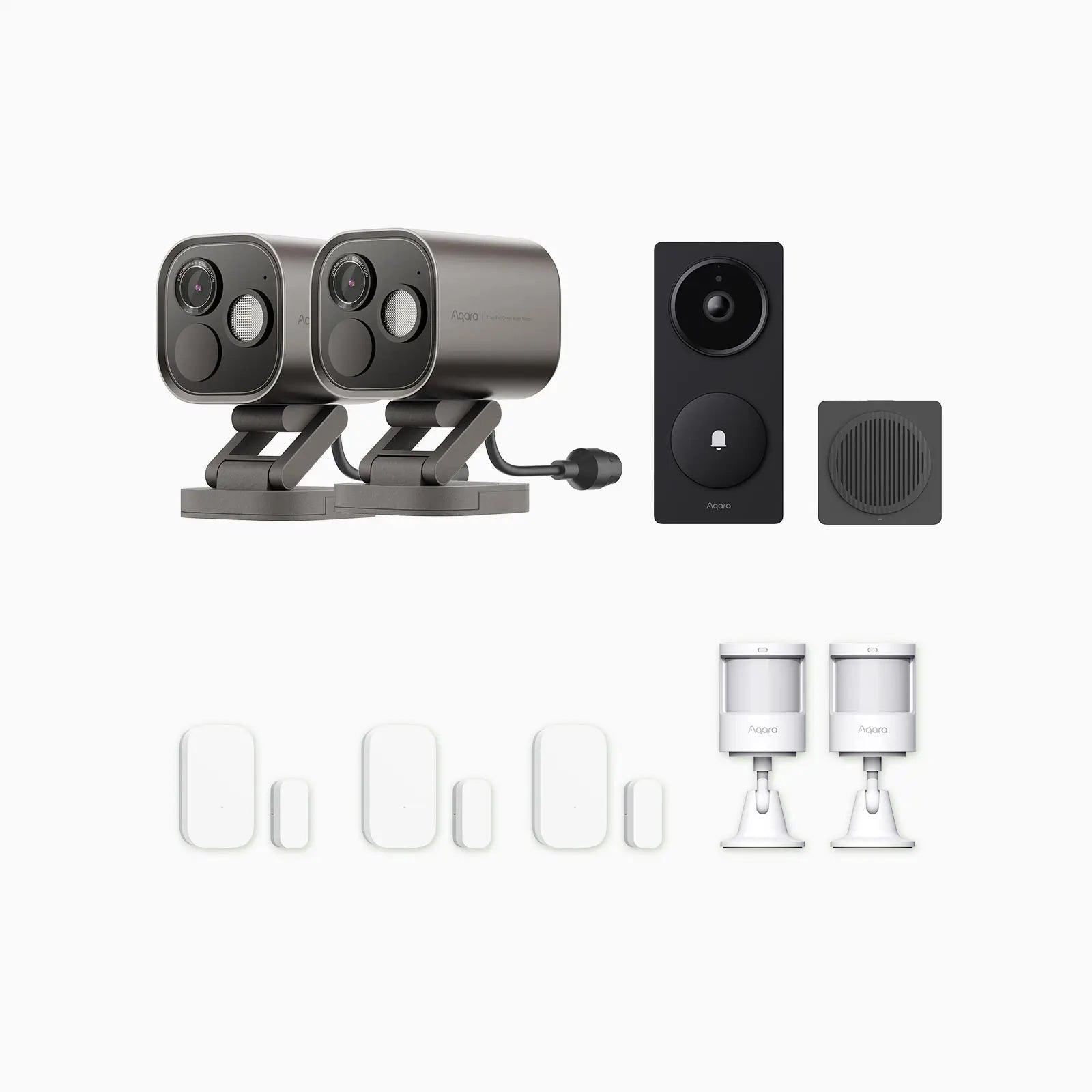

G5 Home Security Kit

Resolution: Quad HD 2688×1520

Image Sensor Size: 1/1.8”

Field of View (FOV): 133° (Diagonal), H112°.V60.3

Aperture: f/1.0

Power Input: PoE type: USB-C 5V 2A / PoE 48V 0.27A; Wi-Fi: USB-C 5V 2A

PIR Detection Angle: Horizontal 100°, Vertical 65°

Spotlight: Rated Power: 3W, Beam Angle: 120°, Color Temperature: 3000K

Communication Protocols: Zigbee & Thread IEEE 802.15.4, Bluetooth (support magicpair); PoE: Ethernet IEEE 802.3af; Wi-Fi: Wi-Fi IEEE 802.11 b/g/n/ac 2.4-5 GHz

Weatherproof: IP65

Local Storage: 8GB eMMC

Night Vision: Color Night Vision

Focal Length: 4.2 mm

Free Cloud Storage Trial: 30 days

Product Dimensions: 70.5×70.5×89 mm (2.78×2.78×3.50 in.) - stand not included

Weight: PoE: 641g; Wi-Fi: 560g

Working Temperature: -30°C ~ +50°C (-22°F ~ 122°F)

Operating Humidity: 0~95% RH, no condensation

Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, SmartThings

Connectivity Protocol: Zigbee / Thread IEEE 802.15.4 (acts as a mesh extender), Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5GHz, Bluetooth1

Local Storage: MicroSD card (not included).2 CLASS 10 or above is supported, up to 512 GB storage.3

Power Input: Main Unit: 12V-24V AC 0.2A 50/60Hz or 12V-24V DC 0.5A (optional); Chime/Hub: 5V DC 1A (USB-C)4

Battery: 6 * LR6 AA alkaline battery (Replaceable)5

Color: Black/Gray

Product Dimensions (Doorbell): 141.5 x 65 x 30.4 mm (5.57 x 2.56 x 1.20 in)

Product Dimensions (Repeater): 65.2 x 65 x 28.4 mm (2.57 x 2.56 x 1.12 in)

Item Net Weight: 538g (1.19LB)

Operating Temperature: Main Unit: -18°C ~ +50°C (0°F ~ 122°F); Chime/Hub: 0°C ~ +40°C (32°F ~ 104°F)6

Operating Humidity: 0~95% RH, no condensation7

Item Net Weight: 0.034 Pounds/15.5g

Wireless Protocols: Zigbee

Hub Required?: YES (AQARA HUB)

Compatible Platforms: Aqara, Apple Home, Alexa, IFTTT

Usage: Indoor Use

Operating Humidity: 0-95%RH, non-condensing

Operating Temperature: -10°C - +45°C (14°F - 113°F)

Batteries: Lithium Metal (CR1632, Included)

Product Dimensions: 1.61 × 0.87 × 0.43 inch (41×22×11 mm) & 0.79 × 0.39 × 0.39 inch (20×9.91×9.91 mm)

Batteries: Lithium Metal (2*CR2450, Included)

Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, SmartThings

Detection Distance: 7 Meters

Item Net Weight: 0.075 Pounds / 34g

Operating Humidity: 0 - 95%RH, non-condensing

Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)

Wireless Protocols: Thread, Bluetooth 5.0

Product Dimensions: 1.30 × 1.30 × 1.64 inch (33.1×33.1×41.6 mm)
